Submersible Dredger 20 Inch Cutter Suction Dredger Head Dredging Reclamation Cutter

Product Categories
Qingzhou KEDA Environment Protection Machinery Co., Ltd
Contact Now

Submersible Dredger 20 Inch Cutter Suction Dredger Head Dredging Reclamation Cutter

Brand Name : keda

Model Number : CSD-200

Certification : ISO9001

Place of Origin : China

MOQ : 1

Price : USD70000-200000/UNIT

Payment Terms : L/C, T/T

Supply Ability : 100/year

Delivery Time : 60days

Packaging Details : Nude

Length overall (ladder raised) : 25m

Maximum standard dredging depth : 25m

Dredge pump power : 150Kww

Discharge port : 20inch

purpose : river dredging

Dredging depth : 20 m

Type : Cutter Suction Dredger,sand dredger,Dredging machine

Condition : New

Draught : 100 cm

Power type : Diesel

Dimension(l*w*h) : Customized

Warranty : 12 months

After-sales service provided : Engineers available to service machinery overseas,Field installation,commissioning and training,Video technical support,Field maintenance and repair service

Application : Sand Dredging,San Mining for Cutter Suction Dredger for River Sand Mining,Sand suction and gold mining,Cutter suction dredger Machine

Color : Customer's Request

Structure : Assemble

Product name : Cutter Suction Dredge,Sand Dredging Machine

Discharge distance : as required

Usage : Sand and mud dredging,Dredging Mud/sand/mining,Port River Lake Sea,hot sale cutter suction dredger used for dredging river sand

Name : Hydraulic Cutter Suction Dredger Ship,China hydraulic Sand cutter suction rive dredger in Bangladesh

Working capacity : 2200m3/h

Discharging distance : 1500meters for cutter suction dredger

Work site : lake,River Sea,Inland river,sea,Shallow Water

Contact Now

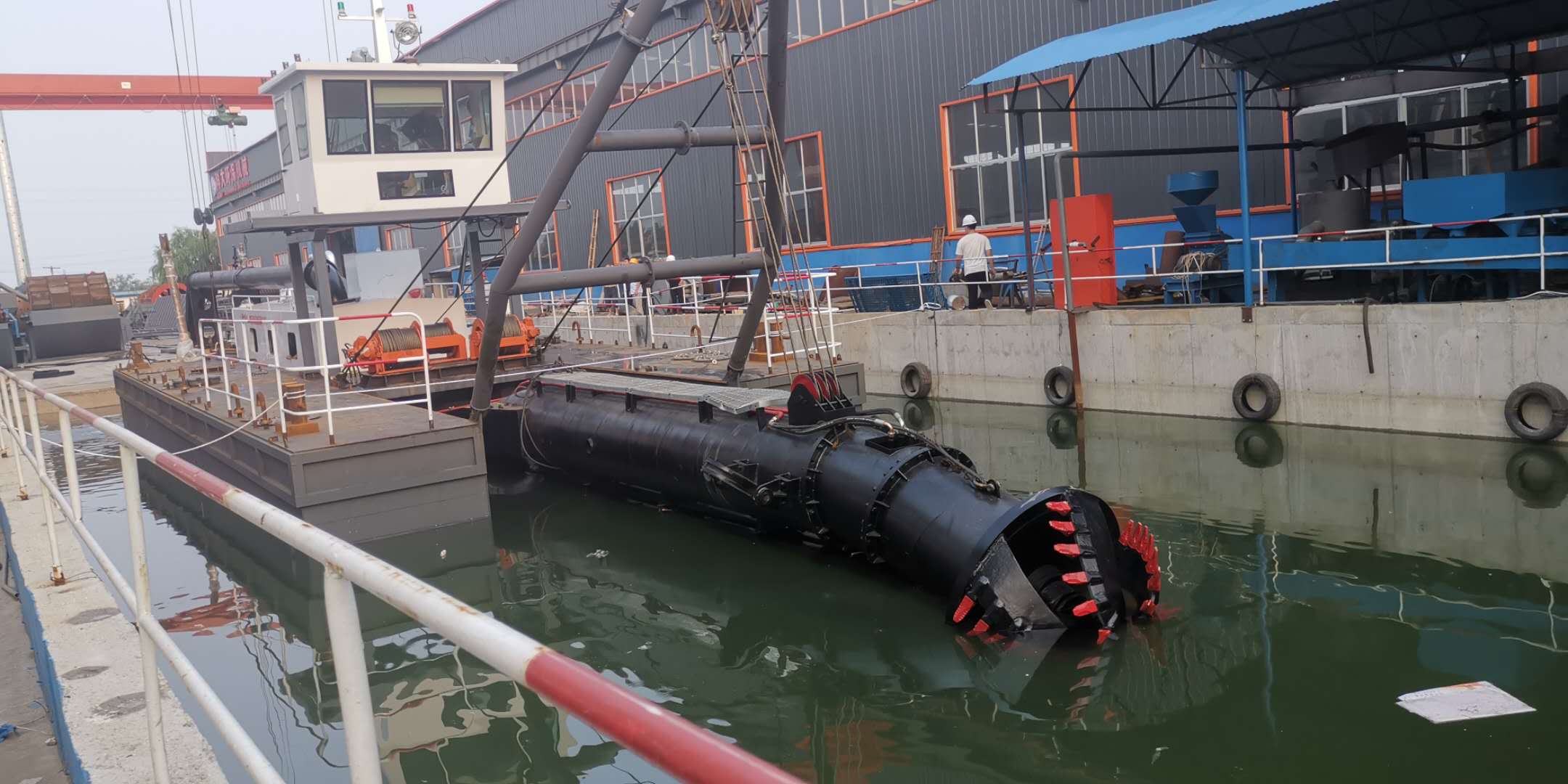

keda Submersible Dredger 20inch cutter head dredging and reclamation cutter power dredge pump


1) Product Description

HD-CSD series dredgers can be applied to many kinds of geologic structures and can be widely used in mineral digging, port dredging and reclamation works. This series of dredgers show their characteristics of rational design, all hydraulic driven, simple operation, little maintenance and strong power. The products have many series with dredging capacity from 500m3/ h to 10000m3/ h, which can satisfy different work demands.

2) Technical Specifications


HD-CSD200 8inch

Length overall (ladder raised) 26m
Breadth 5.3m
Depth 1.5m
Design draught 1.0m
Maximum standard dredging depth 12m
Diameter of discharge pipe 250mm
Max. mixture capacity 800m3/h
Dredge pump power 220kw
Cutter power 40kw
Total weight 38t
*The above parameters are for reference. The dredger is customized according to customers' requirements.

3) Main Features
  1. Dismountable design
  2. Heavy duty robust design
  3. Large range of options are available to customize the CSD
  4. Operation with high efficient cutter head with special patented cutter teeth of highest wear resistance
  5. Operation with high efficiency dredge pump with optimized suction performance
  6. Operation with approved dredge control/monitoring system, automation of dredging process
​

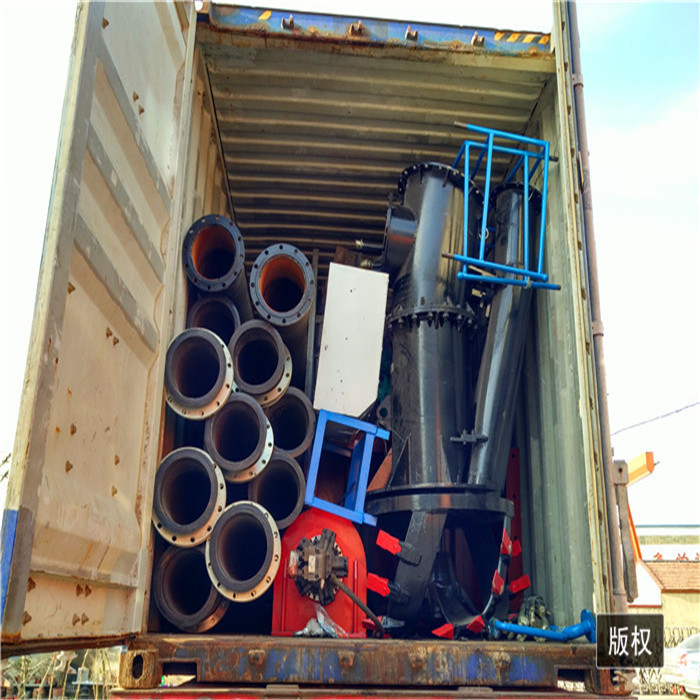

4) Packing & Delivery
Submersible Dredger 20 Inch Cutter Suction Dredger Head Dredging Reclamation Cutter

Packaging Details: standard package for export
Port: Qingdao
Delivery Time: within 50 days after receiving all the money

5) Company Introduction
It is a company specialized in manufacturing dredgers, aquatic weed harvesters, gold mining machines and greenhouses. Head Dredging aims to meet the needs of our customers by providing competitive and high-quality services , such as dredging technology, water cleaning, mineral separation, etc.
The products have many series, such as dredging equipment of large magnitude from 500m3 / h to 10000m3 / h, sand extraction equipment, gold panning ship, multifunctional service work boat, protection boat, etc. These are widely used in sand excavation, river dredging, canal maintenance and expansion, silt removal, land reclamation, port construction, river cleaning, etc. We can also customize products according to the requirements of our customers.
Focuses on leadership, services, cost, safety and efficiency of products, which allows us to continue to dedicate ourselves to heavy industry. With advanced technology, stable and reliable quality, as well as excellent after-sales services,has obtained praise from domestic and foreign customers.

6) Work Shop
​Submersible Dredger 20 Inch Cutter Suction Dredger Head Dredging Reclamation Cutter


7) Case

Project 1. Project 2.
Dredger Model: HD-CSD150 Dredger Model: HD-CSD450
Export Country: Congo Export Country: Bangladesh
Year of Built: 2017 Year of Built: 2015
Application: Dredging Sand from Local River Application: Dredging Port
Water Flow: 500m3/h Water Flow: 3500m3/h
Dredging Depth: 10m Dredging Depth: 15m
Discharge Distance: 500m Discharge Distance: 1500m

Project 3. Project 4.
Dredger Model: HD-CSD150 Dredger Model: HD-CSD350
Export Country: Fiji Export Country: Nigeria
Year of Built: 2014 Year of Built: 2015
Application: Dredging River Application: Dredging River
Water Flow: 500m3/h Water Flow: 2500m3/h
Dredging Depth: 8m Dredging Depth: 12m
Discharge Distance: 500m Discharge Distance: 1000m

Project 5. Project 6.
Dredger Model: HD-CSD250 Dredger Model: HD-CSD250
Export Country: Uganda Export Country: Philippines
Year of Built: 2016 Year of Built: 2016
Application: Dredging the Lake Application: Dredging River
Water Flow: 1200m3/h Water Flow: 1100m3/h
Dredging Depth: 8m Dredging Depth: 8m
Discharge Distance: 800m Discharge Distance: 800m


8) Our Certificates
​Submersible Dredger 20 Inch Cutter Suction Dredger Head Dredging Reclamation Cutter


​

9) FAQ

1. How to assemble the machine
Our technicians are responsible for installing the machine in the field. We also offer training services

2. After-sales service
If there are any problems during the operation of the machine in the warranty period, we will exchange parts for free. All kinds of questions are available after the purchase, please fell free to contact us.
